Self Clinching Close to Edge Standoffs

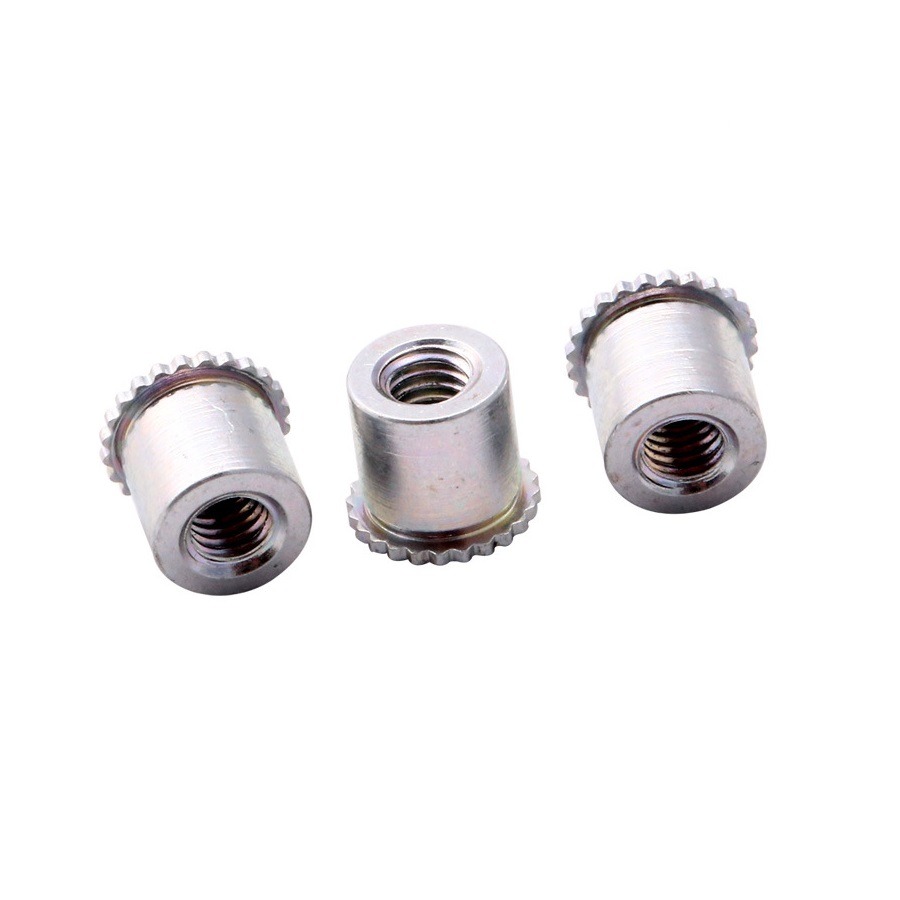

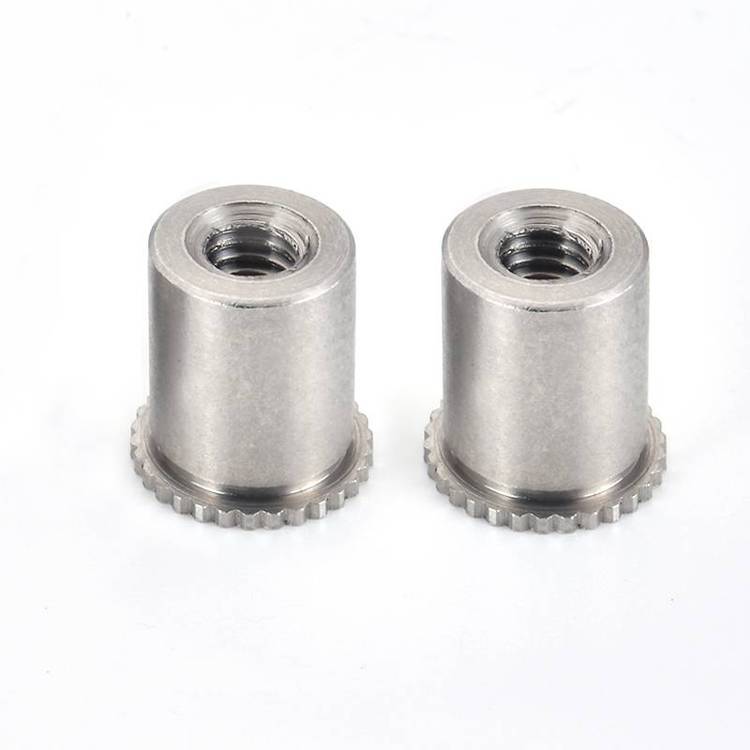

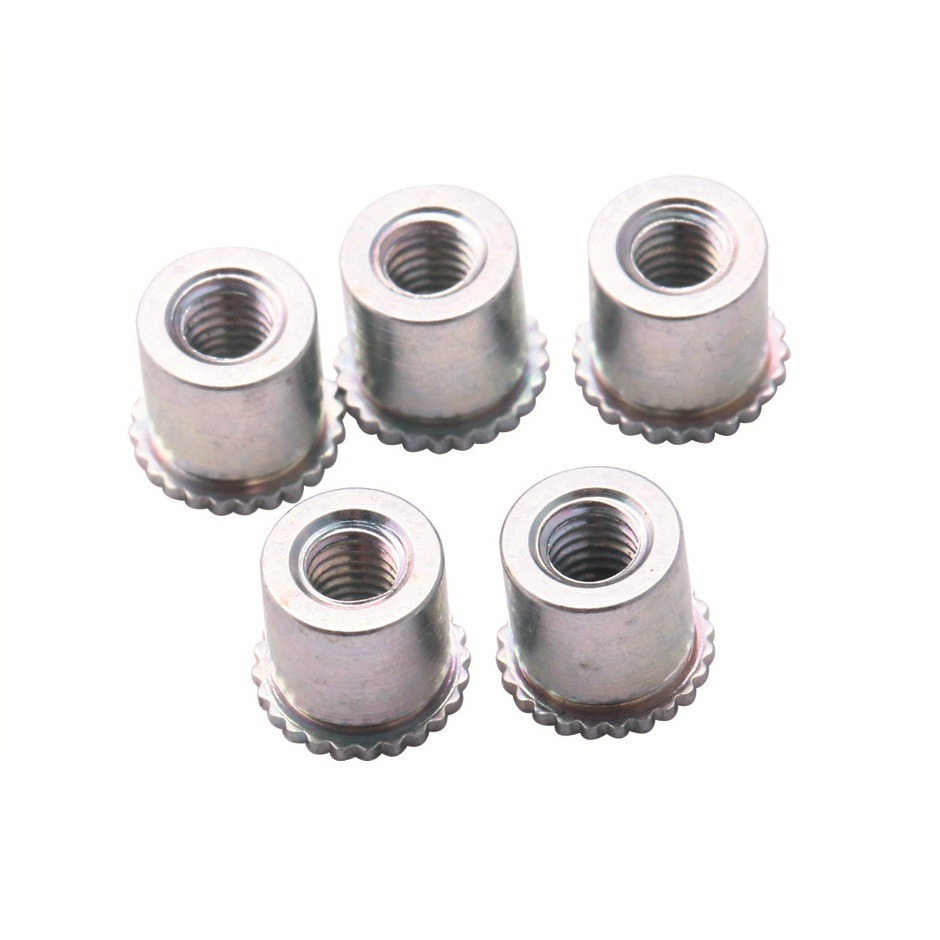

DSOS-M3-6.35 - Threaded Standoffs for Close-To-Edge Applications by PennEngineering PEM

Threaded Standoffs for Close-To-Edge

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet. Types DSO and DSOS standoffs are available for close-to-edge applications. If you require a standoff which we do not offer in this bulletin, please contact us. We will be happy to work with you to satisfy your special need. Available in other lengths on special order.

Panel Thickness
  • 0.94 to 6.35
Material
  • 300 SERIES STAINLESS STEEL
Hole Size
  • 4.22 mm.
Thread
  • M3 X 0.5
Finish
  • Passivated and/or tested per ASTM A380
