Self Clinching Broaching Through Hole Standoffs

Self Clinching Through-hole Broaching Standoffs

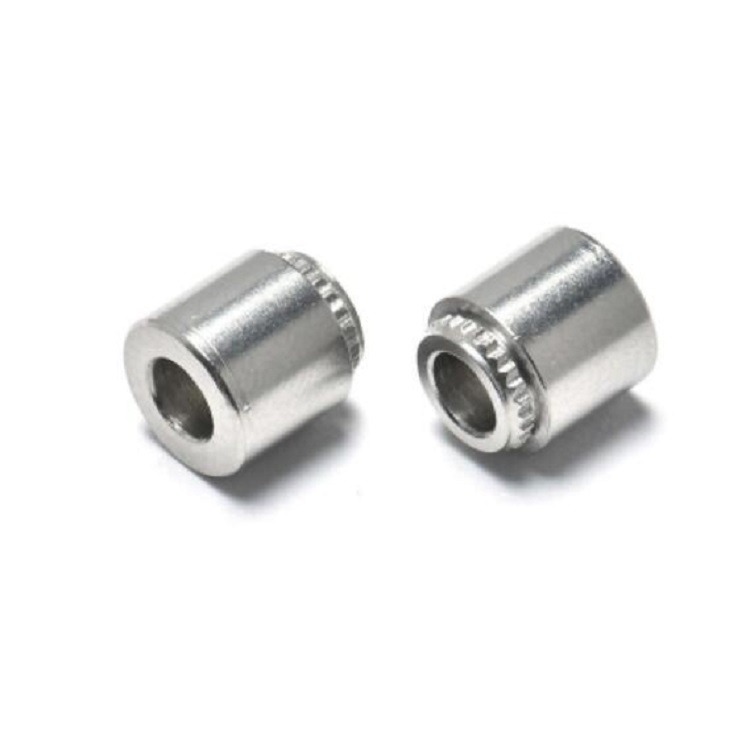

Broaching Standoffs – Types KFE, KFSE – Metric

No matter how sophisticated or advanced, electronic components must be attached reliably and securely if they are to deliver optimum performance. We offer several fastener products for use with PC boards to satisfy component-to-board, board-to-board, and board-to-chassis attachment needs. Broaching fasteners can also offer practical alternatives to “loose” hardware. They install permanently in all types of PC boards, as well as aluminum, acrylic, casting and polycarbonate components. A broaching fastener is a knurled-shank fastening device that can be pressed into a hole to provide a strong threaded or unthreaded attachment point in non-metal materials. Specially formed axial grooves around the shank of the fastener “broach” or cut into the material, creating a firm, interference-type fit resistant to rotation.

Panel Thickness
  • 1.53 Min.
Hole Size
  • 5.41 mm.
Finish
  • Electro-Plated Tin, ASTM B545, Class B with Clear Preservative Coating, Annealed
Material
  • Steel
